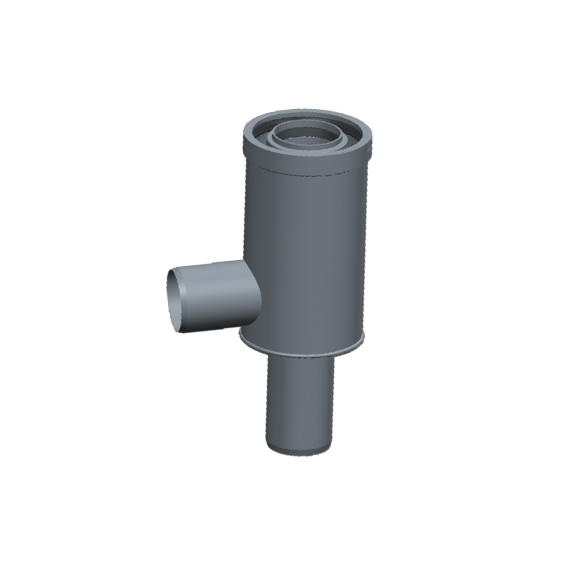

4'' Twin Pipe to 4''/6'' Concentric Adaptor

Article number: ICTC0446*

Seamlessly transition from InnoFlue Single Wall to InnoFlue Concentric with InnoFlue Twin-Pipe to Concentric Adaptor. Meet any venting requirements and effortlessly manage any unforeseen obstacles with versatile adaptor that maximizes the best options from two different InnoFlue product families. Rated to Rated to 230°F (110°C), InnoFlue Concentric Adaptors are a user-friendly option that has been evaluated to UL1738 and ULCS636 by ICC.

  • Seamlessly transitions between InnoFlue Single Wall and InnoFlue Concentric components.
  • Configuragle options easily handles any obstacles and allows for maximum versatility.
  • Evaluated to UL1738 and ULCS636 by ICC.
  • Installs quickly & easily without glues, primers, or solvents.
  • Rated to 230°F (110°C).
View all specifications

All media

ICTC

Specifications

General

Product Name
4'' Twin Pipe to 4''/6'' Concentric Adaptor
Trade name
InnoFlue
GTIN
0815010016541
Part number
250408400130

Technical

Color
Gray
Material
PPs
Material air inlet pipe
PPs
System type
Concentric
Material flue pipe
PPs
Number of connections
4

Dimensions

Length gross
534 mm / 21 inch
Height
183 mm / 7.2 inch
Diameter air inlet pipe
160 mm
Width
355 mm / 14 inch
Net weight
1.383 kg / 3 lbs
Diameter flue pipe
110 mm / 4 inch

Logistical

Intrastat
7307933010
Base unit packaging
Unpacked
Packaging / Trade length
534 mm / 21 inch
Packaging / Trade height
183 mm / 7.2 inch
Number per packaging
1
Gross weight
1.383 kg / 3 lbs
Packaging / Trade width
355 mm / 14 inch

Performance

Temperature resistance (max.)
120 °C

Certification

Certificates (US/CAN)
UL 1738 – ICC-ES / ULC S636 – ICC-ES
